FLUIDICS FOR RESEARCH & DEVELOPMENT

CONDITIONED REFUELING SYSTEMS
The Technics line of mobile refueling systems provide an integrated package for precision temperature and rate controlled fuel delivery.

  • Temperatures from 20 to 150°F with total system accuracy of +/-2°F
  • Rapid heat up, cool down: 100 gallons, 10°F/10 minutes
  • Flowrates to 4-20 GPM accurate to +/- 0.3 GPM. Other flowrates available
  • Sealed and blanketed fuel storage
  • Suitable for all fuels: Diesel, M-85, JP-8
  • Leak, pressure, and temperature interlocks

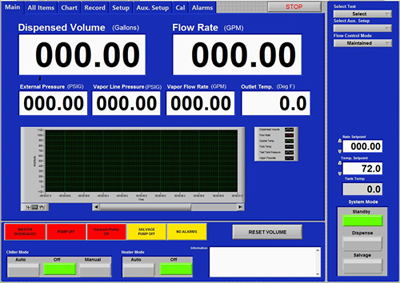

  • Fully programmed Windows based control & data acquisition
  • Circulating fuel up to nozzle insures equal temperatures throughout system
  • Automatic flowrate step change or ramping for specialty refueling tests
  • Variable speed fuel pump Hazardous area rated, Class I Div. 2, Group D. / Div. 1 optional
  • Automatically stirs tank in standby to prevent temperature stratification
  • Integral vapor recovery system
  • Vapor flow control optional

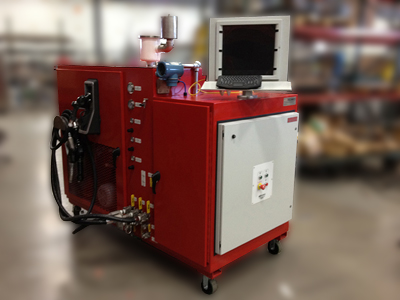

Fuel Cart
